| System | RFH / Automatic Identify |
|---|---|
| Add-A-Key | Yes |
| All-Keys-Lost | Yes |
| PIN Read | Yes |
| Programs Remotes | Yes, Programs with key |
| Programs Remotes | Yes, Programs with key |
| Resync Available | No |
Notes:

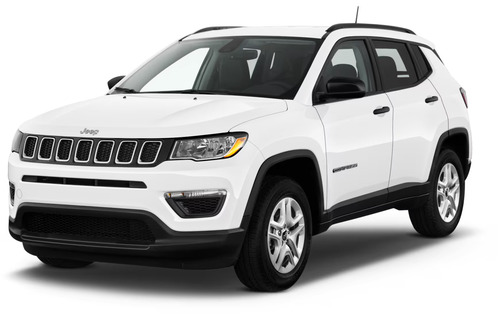

Requires use of a bypass cable, there are two options. There is an RFH hub under the rear headliner. Will need something like the TDB084 cable to connect to it. The other option is to use the brute force cable or Chrysler Bypass Cable by Xtool, and back probe two wires on a CAN connector located on the passenger side, under the right side trim panel. Remove a single screw, take off applicable trim panels, and there will be a connector right there, almost to the weather stripping. On the Compass youll need to probe the brown with white stripe is CAN HI, yellow is CAN LOW. On the renegade you will need to back probe the following; CAN HI- green, CAN LOW- brown
