SUPPORTED VEHICLE DETAILS

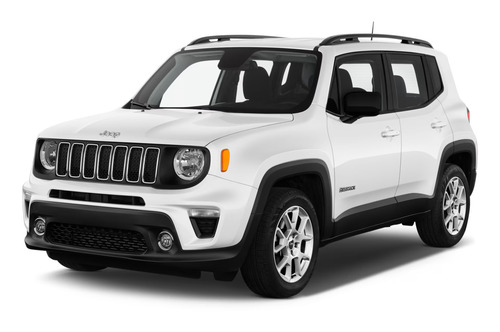

Jeep

Make

Renegade

Model

2020

Year
System RFH / Automatic Identify
Add-A-Key Yes
All-Keys-Lost Yes
PIN Read Yes (5 Digit)
Programs Remotes Yes
Programs Remotes Yes
Resync Available No
Notes:

Requires use of a bypass cable, there are two options. There is an RFH hub under the rear headliner. Will need something like the TDB084 cable to connect to it. The other option is to use the brute force cable or Chrysler Bypass Cable by Xtool, and back probe two wires on a CAN connector located on the passenger side, under the right side trim panel. Remove a single screw, take off applicable trim panels, and there will be a connector right there, almost to the weather stripping. On the Compass youll need to probe the brown with white stripe is CAN HI, yellow is CAN LOW. On the renegade you will need to back probe the following; CAN HI- green, CAN LOW- brown

Compatible Parts List

Jeep Renegade 2016+ 4-Button Flip Remote Head Key
MFK-067 Refill Blades 10-PackAcA A Chrysler SIP22
