17336

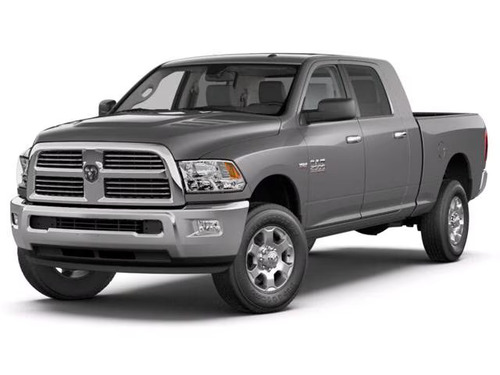

SUPPORTED VEHICLE DETAILS

RAM

Make

2500

Model

2018

Year
System RFH Type 10
Add-A-Key (fobik) yes, (prox) yes
All-Keys-Lost (fobik) yes, (prox) yes
PIN Read yes
Programs Remotes Yes, Programs with key
Programs Remotes Yes, Programs with key
Resync Available No
Notes:

Requires use of a bypass cable, such as the ADC2011, TDB084, FCA Ultimate Chrysler Gateway Bypass, or Chrysler Bypass Cable by Xtool, STAR connector is located to the left of the steering column behind the lightswitch. Pull off left side panel, and you'll see it. Snake the cable either up from the bottom or through the hole on the left side of the dash.

Compatible Parts List

Dodge RAM 2013-2018 4-Button Fobik
Dodge RAM 2013-2018 3-Button Fobik
Dodge RAM 2013-2018 4-Button Smart Key
Dodge RAM 2013-2018 4-Button Smart Key
Dodge RAM 2013-2018 5-Button Smart Key w/Remote Start
Dodge RAM 2013-2018 3-Button Smart Key
Philips 46 Tag (Wedge) Transponder Chips (Chrysler / GM Circle+)
Chrysler/Dodge/Jeep 2011-2019 Emergency Key
Chrysler/Dodge/Jeep 2011-2019 Emergency Key BLACK
MFK-083 Chrysler Y157/Y159
Chrysler Y164 Transponder Key
Chrysler Y170 Transponder Key
